Timber Lake Playhouse | 2019
HEAD ELECTRICIAN
Budget
Application
Practicals
The Glass Menagerie
The Glass Menagerie
Nebraska Repertory Theatre | Howell Memorial Theatre | 2019
Director:
Scenic Designer:
Lighting Designer:
Technical Director:
Master Electrician:
Andy Park
Greyson McCown
Adam Jezl-Sikorski
Lauren Spilinek
Cameron L Strandin
Shop Order
One of our biggest responsibilities as a Master Electrician at the Johnny Carson School of Theatre and Film and especially for Nebraska Rep Production is to make a thorough and well organized Shop Order. This Shop Order is made from a Microsoft Excel master workbook I created.

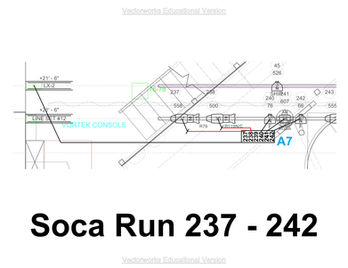

Soca Run Maps
Another Responsibility is planning out Soca Runs and Dimmers from Howell Theatre's drop box circuiting system. These Plots could be distributed to individual electricians for more productivity during Light Hang

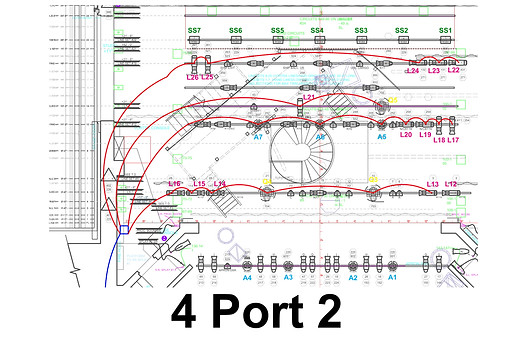

DMX Runs
Same as Soca Runs, DMX Runs also have to be planned out and mapped
Documents
Light Plot (Vectorworks)
Channel Hookup (Lightwright)
Instrument Schedule (Lightwright)
Shop Order (Excel)

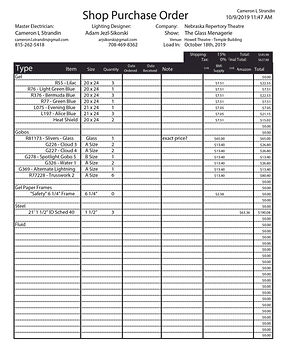

Shop Purchase Order
Also from the same master Excel workbook, It was important for the production to keep track of what was bought.

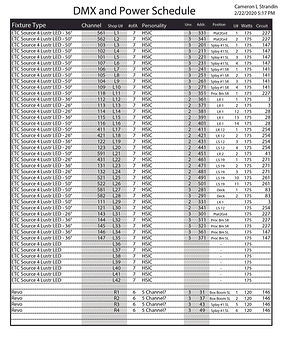

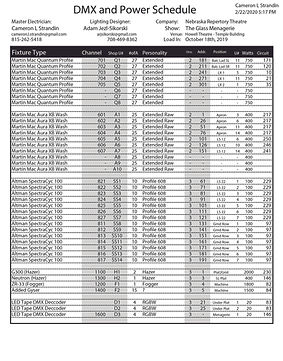

DMX and Power Schedule
The DMX and Power Schedule is the name I use to describe the document used to plan out every non-conventionals DMX address and Universe based on DMX Runs
Fog and Haze Schedule
In order to be able to suppress the fire alarm system in the theatre a show is in, it is often requested of the Electrics department to make an Atmospherics schedule with all planned times that Fog and or Haze will be in use.
TLP 2019
Timber Lake Playhouse 2019
Timber Lake Playhouse | 2019 Summer Season | 2019
Artistic Director:
Lighting Designers:
Technical Director:
Master Electrician:
Paul Stancato
Cameron L Strandin, Joe Cantalupo, Ben Danielowski, Tanner Simpson
Addison Calvin
Cameron L Strandin
Shop Order
This Shop Order format is the predecessor to the one used for The Glass Menagerie. I believe that a well organized Shop Order is a great starting point for all other ME Paperwork.
DMX and Power Schedule
Electrics Budget
At Timber Lake Playhouse, I was responsible for a six show budget for the whole season. Company Management required Purchase Orders to be filled out before any purchase could be made. I made this Excel document so that I could fill in the Purchase Order information and it would automatically calculate the budget.

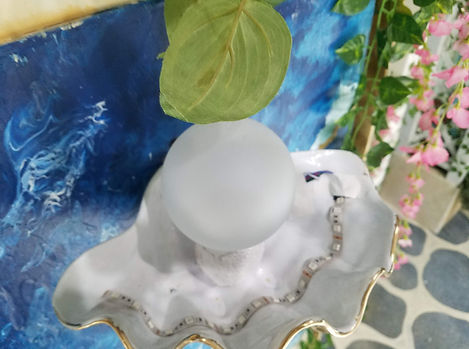

Mamma Mia Scenic Lights
The Scenic Designer of Mamma Mia requested light up orbs for the set to look like pearls in a shell. I decided that instead of making the orbs light up from the inside, it would give a better effect to have them be up-lit from the shells themselves
Into the Woods Moon
In Into the Woods, the Scenic Designer requested for their to be a light up moon that could travel across the stage. My solution for this was to use LED Tape around the rim of the Moon and for the ribbon cable slack to be controlled through a system of Pulleys
Into the Woods Book Themed Footlights
Documents
Light Plot (Vectorworks)
Channel Hookup (Lightwright)
Instrument Schedule (Lightwright)
Shop Order (Excel)
